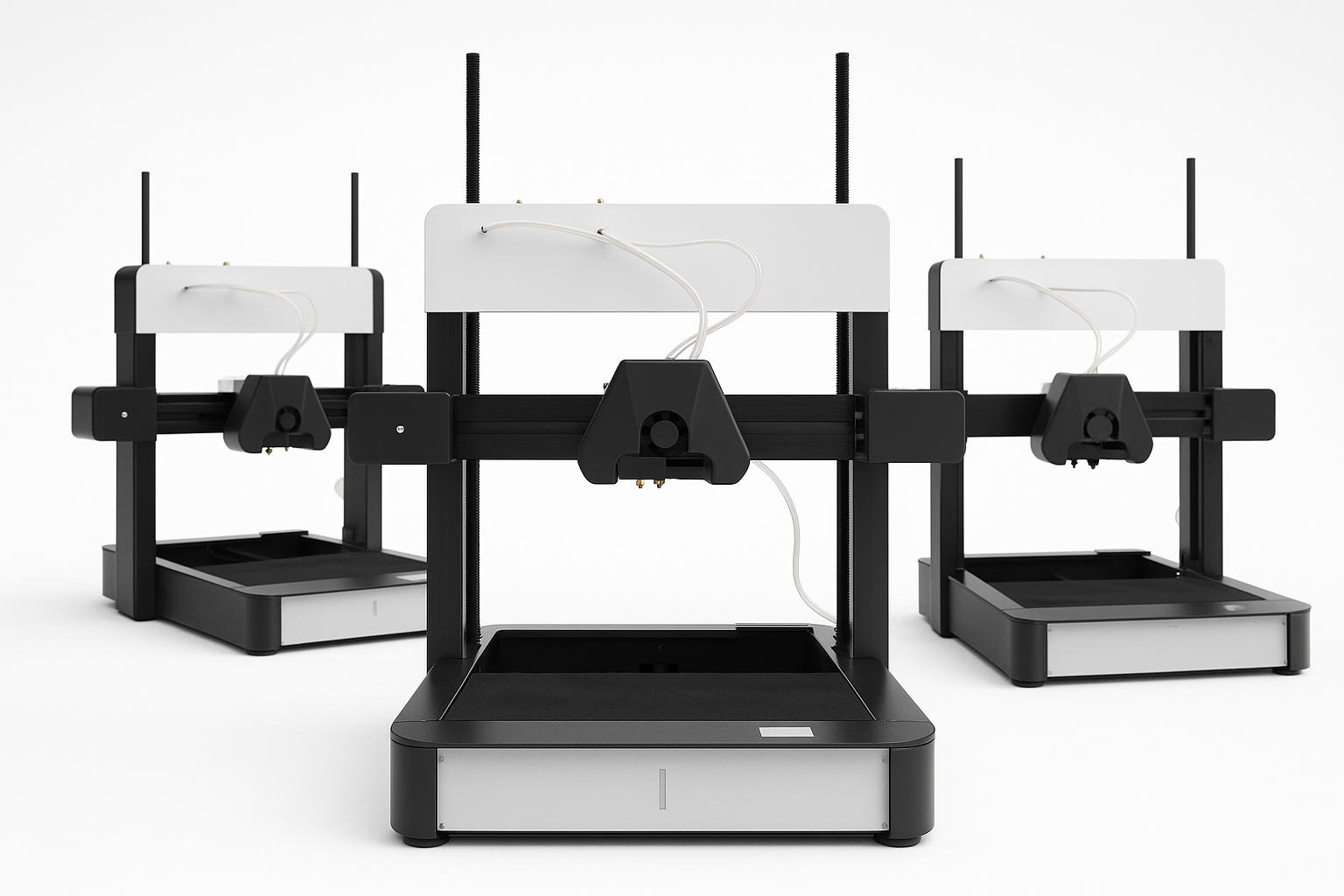

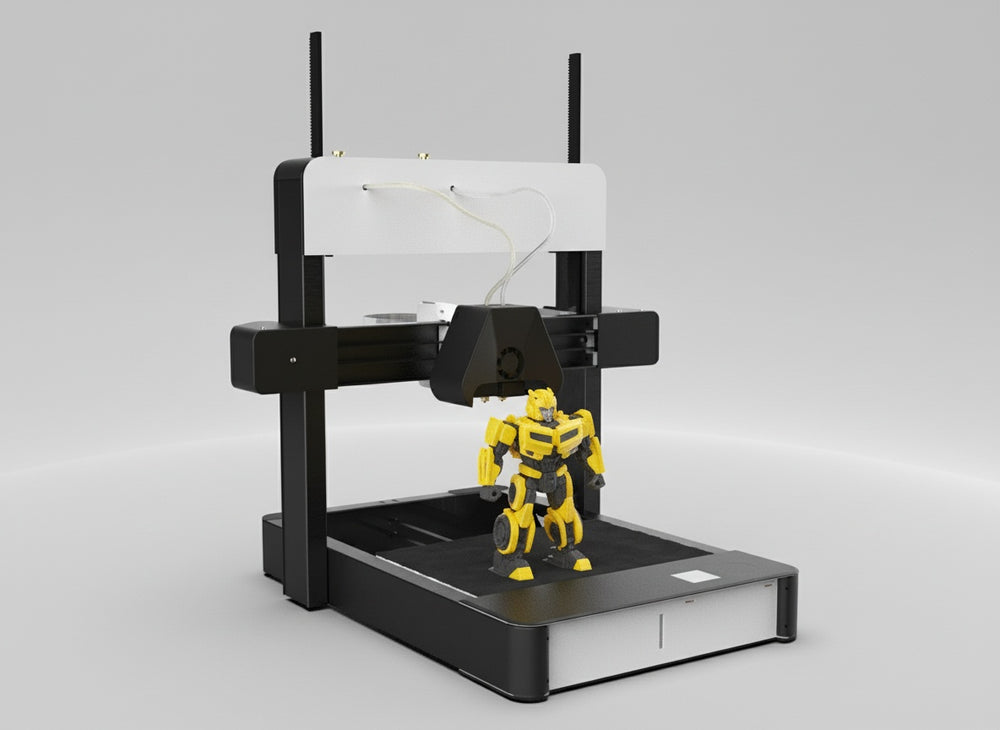

Faster. Bigger. Better.
Multi-Color Capability
Unleash Multi-color printing capability with the Enabler Pro.
Bed Levelling Sensor
We know you are tired with bed levelling hassles.
The Enabler Pro features high precision sensor based bed levelling with a single touch using M3D UI.

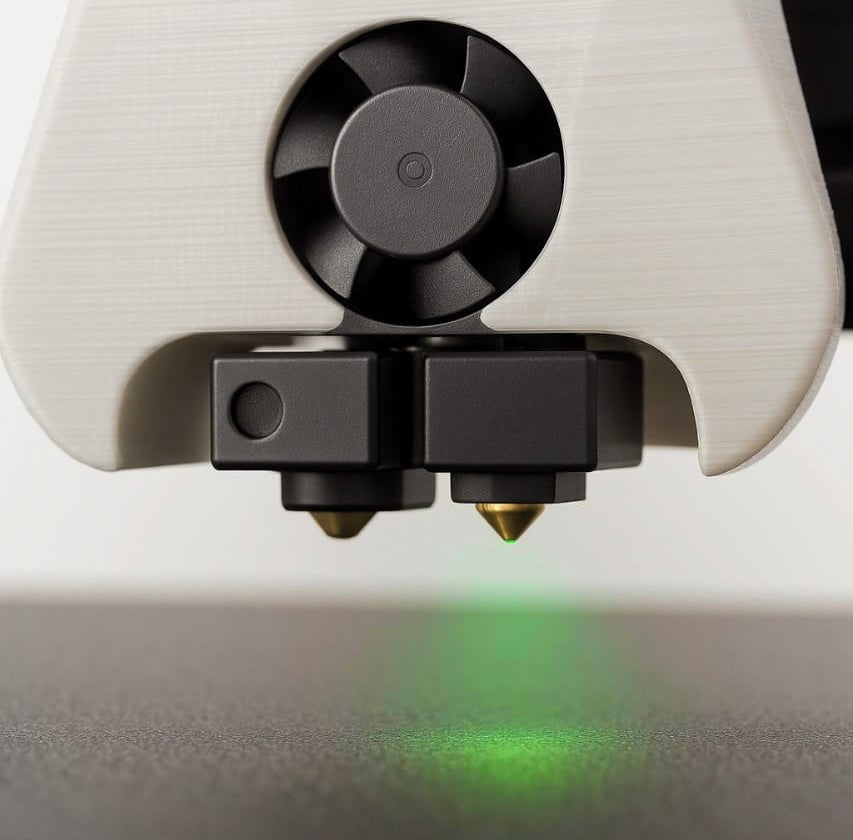

Dual Drive Extruder
The new and improved Dual Drive extruders enable hassle free extrusion, smooth filament flow and remove the risk of grinding.

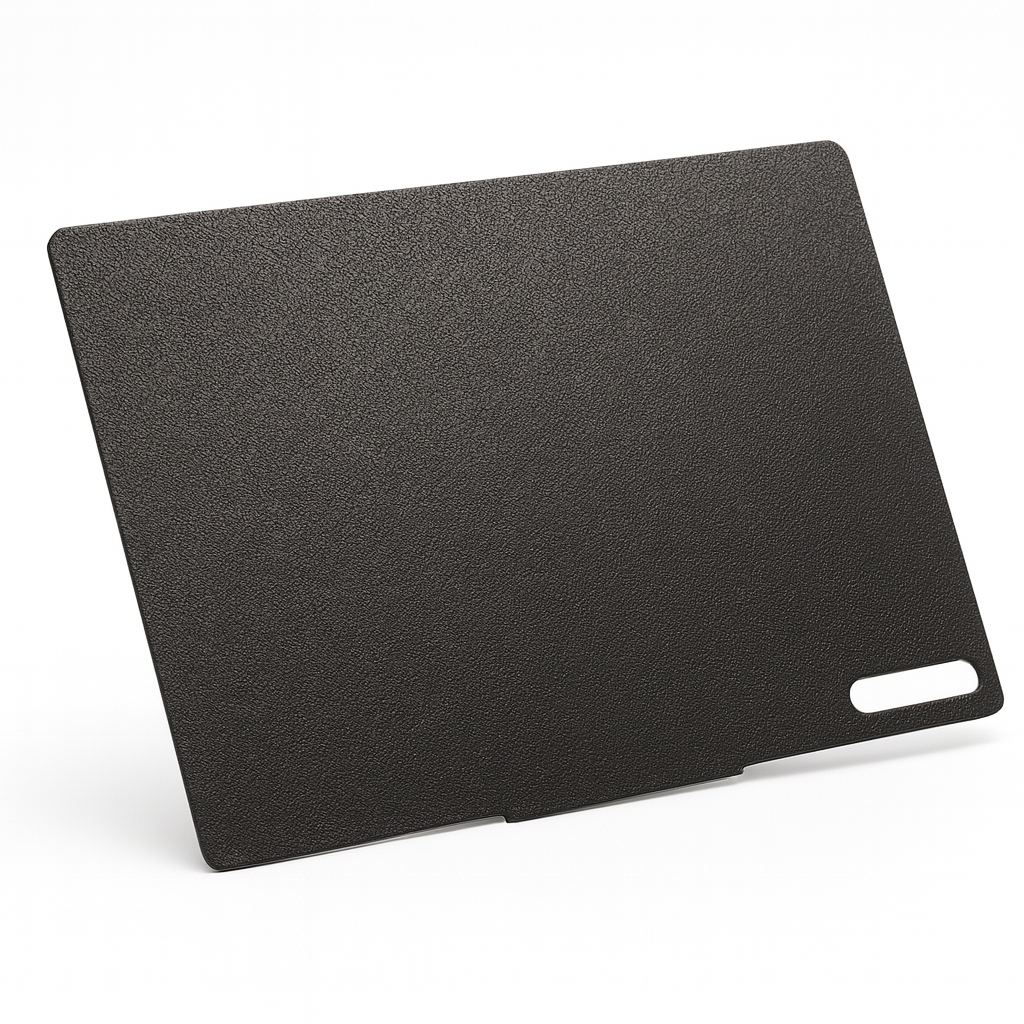

Magnetic Build Plate
Taking off prints has never been easier.
With the new Spring Steel Composite build plate with a textured surface, enjoy improved layer adhesion & prints that just pop off with little flex.
And the best part? Once done, just place it back on the bed and it seamlessly attaches to the bed magnetically.

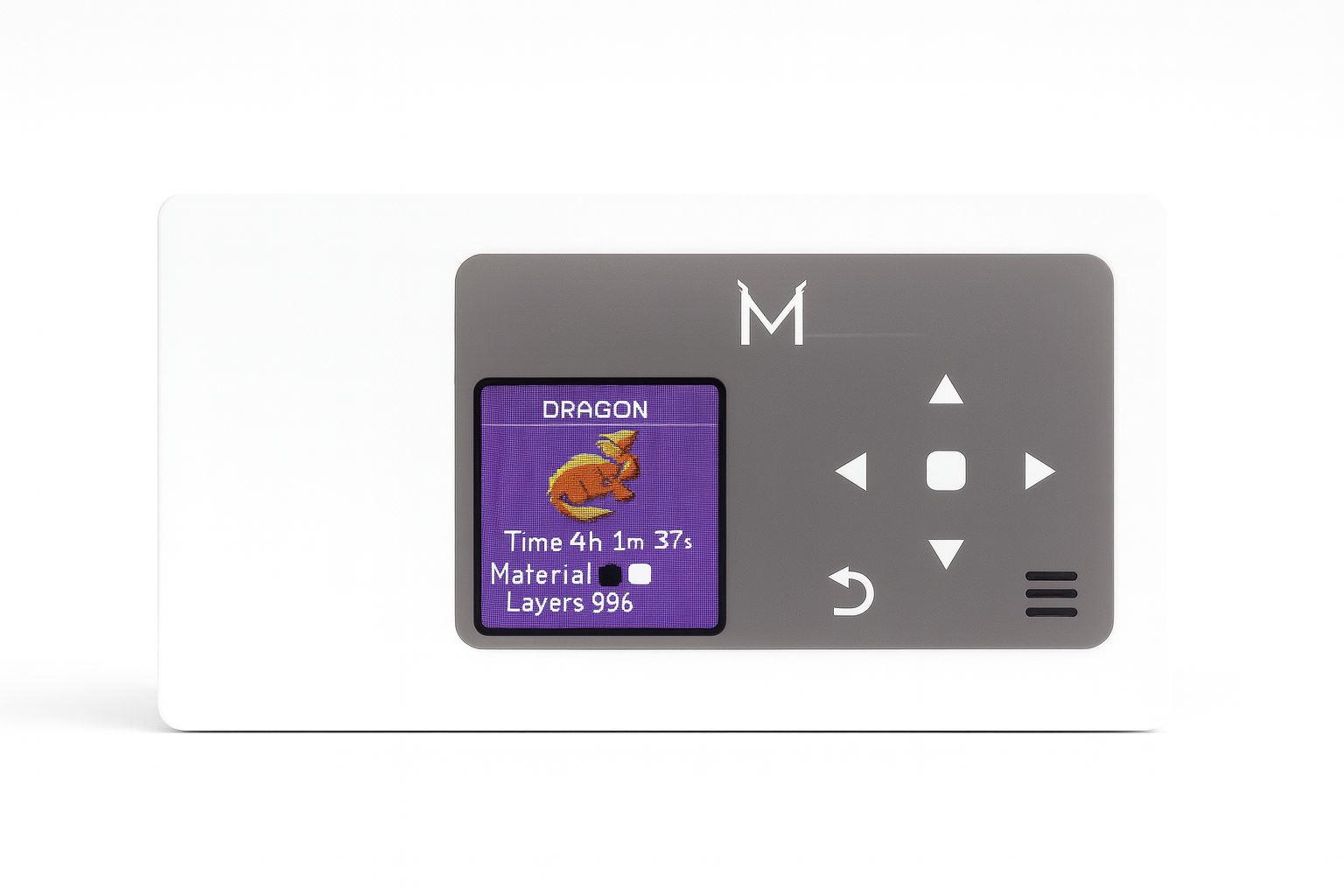

M3D Smart UI
Enabler Pro features the all new M3D Smart UI, a combination of Touchpad and Smart Display which enables you to use the printer standalone.
No Wifi. No computer. Just load your print file in an sd card and print directly using M3D UI.
Power Loss Recovery
With Enabler Pro, power loss does not mean print loss. Enabler Pro ensures print completion. by automatically resuming print upon power loss.
Benchy
Ladies and gentlemen, please welcome Benchy! 👋 Proof that the D8500 is ready to sail into any project.
Dual Color Print
Dragon and Mini-Dragon sample printed with two separate coloured filaments. The print quality varies with Prime Tower parameters which helps with filament switching.
Dual Color Print
Spiderman bust-styled model printed in special "fuzzy skin" mode with matte black PLA.
Dual Color Print
Hollow Knight figure printed in 5 parts:
- Head
- Body
- Cloak
- Base
- Sword
Dual Color Print
A bug along with grass printed using standard black and green PLA.
The bug was printed in a kit-card model.
The grass was printed using controlled overhangs attached to a sacrificial thin layer which is removed after printing.
MeasureLab Extensions
){kind=link}
SD Card Requirement!
The recommended method of printing with D8500 Enabler Lite/Pro is either through WiFi or local storage, both of which require an SD Card to be present inside the printer.
Although the printer does not come with one, you can get one from any local electronics shop or through some trusted vendors such as Digilog.pk.
Enabler Lite vs Enabler Pro
Here’s how the two versions stack up side by side:| Feature | Enabler Lite | Enabler Pro |
|---|---|---|
| Bed Size | 200x160x150 | 220x160x150 |
| Dual Drive Extruder | ✔ | ✔ |
| Wifi/SD Card Printing | ✔ | ✔ |
| M3D Smart UI | ✔ | ✔ |
| Composite Build Plate | ✔ | ✔ |
| Bed Leveling Sensor | ✖ | ✔ |
| No of Filaments | 1 | 2 |
| Resume of Power Failure | ✖ | ✔ |
Technical Specifications
For the enthusiasts and nerds| Specification | Details |
|---|---|
| Printing Technology | FFF & FDM |
| Printing Resolution | 100 microns |
| Smart Display | Yes |
| Dual Motor Color (Multi-Color 3D Printing) | Yes |
| Automatic Bed Levelling | Yes |
| Power Loss Recovery | Yes |
| Build Volume | 200 × 160 × 150 mm (Lite) / 220 × 160 × 150 mm (Pro) |
| Printing Speed | Up to 100 mm/s |
| Max Extrusion | 12 mm³/s |
| Max Hotend Temperature | 260 °C |
| Nozzle Diameter | 0.4 mm |
| Print Resolution | 0.01 mm – 0.5 mm |
| Filament Diameter | 1.75 mm |
| Filament Compatibility | PLA, ABS, PLA+, PLA PRO |
| Print Bed | Spring Steel Composite Build Plate with Acrylic Bed |
| Connectivity | USB Type-C, SD Card, Wi-Fi (optional) |
| Software | Compatible with Orca Slicer, Pronterface, and other open-source slicing software |
| Power Input | AC 220V, 50–60Hz |
| Power Output | DC 12V, 6A, 72W |
| Dimensions | 330 × 330 × 180 mm |
| Weight | 4 kg |
